BS4449 Steel Reinforcement Rebar Description
BS4449 is yet another deformed steel bar standard. It is also differentiated as per European standards. When it comes to manufacturing, the steel bars falling in this standard are also hot rolled, which means that they are also used for general purposes, i.e. in common construction projects. These deformed bars are also available between 12 mm to 30 mm diameter size. And the common lengths that they are available in are 9 m and 12 m. Though, it might vary highly.
| BS 4449:97 British Rebar Specifications | |||||||||||||||
| Rated Diameter |
Nominal Cross Section Area | Weight | EN To The Ribs (mm) | Longitudinal Ribs (mm) | Pitch / Step mm |
Ribs Tip Distance mm |
|||||||||
| Kg / m |
Tolerance % |
Height | Width | Height | Width | ||||||||||
| mm | m㎡ | min. | max. | min. | max. | min. | max. | min. | max. | min. | max. | min. | max. | ||
| 6 | 28.3 | 0.222 | ± 9 | 0.3 | 0.6 | 0.48 | 0.72 | 0.3 | 0.84 | 0.48 | 1.2 | 3,.0 | 4.8 | 1.5 | 2.3 |
| 8 | 50.3 | 0.395 | ± 6.5 | 0.4 | 0.8 | 0.64 | 0.96 | 0.4 | 0.84 | 0.64 | 1.6 | 4.0 | 6.4 | 2.0 | 3.1 |
| 10 | 78.5 | 0.616 | 0.5 | 1.0 | 0.8 | 1.2 | 0.5 | 0.84 | 0.8 | 2.0 | 5.0 | 8.0 | 2.5 | 3.9 | |
| 12 | 113.1 | 0.888 | ± 4.5 | 0.6 | 1.2 | 0.96 | 1.44 | 0.6 | 0.84 | 0.96 | 2.4 | 6.0 | 9.6 | 3.0 | 4.7 |
| 16 | 201.1 | 1.579 | 0.8 | 1.6 | 1.28 | 1.92 | 0.8 | 0.84 | 1.28 | 3.2 | 8.0 | 12.8 | 4.0 | 6.2 | |
| 20 | 314.2 | 2.466 | 1.0 | 2.0 | 1.6 | 2.4 | 1.0 | 0.84 | 1.6 | 4.0 | 10.0 | 16.0 | 5.0 | 7.8 | |
| 25 | 490.9 | 3.854 | 1.25 | 2.5 | 2.0 | 3.0 | 1.25 | 0.84 | 2.0 | 5.0 | 12.5 | 20.0 | 6.2 | 9.8 | |
| 32 | 804.2 | 6.313 | 1.60 | 3.2 | 2.56 | 3.84 | 1.60 | 0.84 | 2.56 | 6.4 | 16.0 | 25.6 | 8.0 | 12.5 | |
| 40 | 1256.6 | 9.864 | 2.0 | 4.0 | 3.2 | 4.8 | 2.0 | 0.84 | 3.2 | 8.0 | 20.0 | 32.0 | 10.0 | 15.7 | |
| 50 | 1963.5 | 15.413 | 2.5 | 5.0 | 4.0 | 6.0 | 2.5 | 0.84 | 4.0 | 10.0 | 25.0 | 40.0 | 12.5 | 19.6 | |
| BS 4449:97 Steel Rebar Mechanical Properties | ||||
| Quality |
Akma N / mm2< | Akma / Pull Rate N/mm2 | Elongation Elasticity | Total max. % AGT |
| min. | min. | min. | min. | |
| GR 250 | 250 | Akma x 1.15 | 22 | – |
| GR 460 A | 460 | Akma x 1.05 | 12 | 2.5 |
| GR 460 B | 460 | Akma x 1.08 | 14 | 5 |
| BS 4449:97 Steel Rebar Chemical Properties | |||||

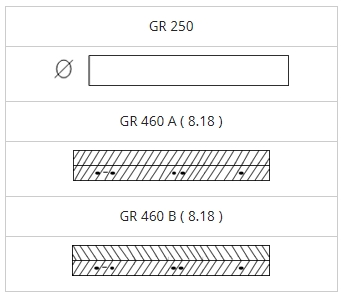

| Element | GR 250 % max. | GR 460 A / B % max. | Ribs and Marking Method | ||
| Casting | Product | Casting | Product |  |
|
| C | 0.25 | 0.27 | 0.25 | 0.27 | |
| P | 0.060 | 0.065 | 0.050 | 0.055 | |
| S | 0.060 | 0.065 | 0.050 | 0.055 | |
| N | 0.012 | 0.013 | 0.012 | 0.013 | |
| CE | 0.42 | 0.45 | 0.51 | 0.54 | |
| Mn Cr+Mo+V Ni+Cu | |||||
| CE = C + ————- + ——————- + —————– | |||||
| 6 5 15 | |||||
Scope of Application
Widely used in houses, bridges, roads, especially railways and other civil engineering.
| USA | Japan | Germany | U.K. |
|
France | Italy | Spain | Switzerland | China | |
|
AISI/SAE |
JIS |
W‐nr. |
DIN |
BS |
EN |
AFNOR |
UNI |
UNE |
SS |
GB |
|
A570.36 |
STKM 12A |
1.0038 |
RSt.37‐2 |
4360 |
‐ |
E 24‐2 |
‐ |
‐ |
1311 |
15 |
|
- |
STKM 12C |
- |
- |
40 C |
- |
Ne |
- |
- |
- |
- |
|
1015 |
‐ |
1.0401 |
C15 |
080M15 |
‐ |
CC12 |
C15, C16 |
F.111 |
1350 |
15 |
|
1020 |
‐ |
1.0402 |
C22 |
050A20 |
2C |
CC20 |
C20, C21 |
F.112 |
1450 |
20 |
|
1213 |
SUM22 |
1.0715 |
9SMn28 |
230M07 |
1A |
S250 |
CF9SMn28 |
F.2111 |
1912 |
Y15 |
|
11SMn28 |
||||||||||
|
12L13 |
SUM22L |
1.0718 |
9SMnPb28 |
‐ |
‐ |
S250Pb |
CF9SMnPb28 |
11SMnPb28 |
1914 |
‐ |
|
‐ |
‐ |
1.0722 |
10SPb20 |
‐ |
‐ |
10PbF2 |
CF10Pb20 |
10SPb20 |
‐ |
‐ |
|
1215 |
‐ |
1.0736 |
9SMn36 |
240M07 |
1B |
S300 |
CF9SMn36 |
12SMn35 |
‐ |
Y13 |
|
12L14 |
‐ |
1.0737 |
9SMnPb36 |
‐ |
‐ |
S300PB |
CF9SMnPb36 |
12SMnP35 |
1926 |
‐ |
|
1015 |
S15C |
1.1141 |
Ck15 |
080M15 |
32C |
XC12 |
C16 |
C15K |
1370 |
15 |
|
1025 |
S25C |
1.1158 |
Ck25 |
‐ |
‐ |
‐ |
‐ |
‐ |
‐ |
25 |
|
A572-60 |
‐ |
1.890 |
StE380 |
4360 55 |
‐ |
‐ |
FeE390KG |
‐ |
2145 |
‐ |
|
1035 |
‐ |
1.0501 |
C35 |
060A35 |
‐ |
CC35 |
C35 |
F.113 |
1550 |
35 |
|
1045 |
‐ |
1.0503 |
C45 |
080M46 |
‐ |
CC45 |
C45 |
F.114 |
1650 |
45 |
|
1140 |
‐ |
1.0726 |
35S20 |
212M36 |
8M |
35MF4 |
‐ |
F210G |
1957 |
‐ |
|
1039 |
‐ |
1.1157 |
40Mn4 |
150M36 |
15 |
35M5 |
‐ |
‐ |
‐ |
40Mn |
|
1335 |
SMn438(H) |
1.1167 |
36Mn5 |
‐ |
‐ |
40M5 |
‐ |
36Mn5 |
2120 |
35Mn2 |
|
1330 |
SCMn1 |
1.1170 |
28Mn6 |
150M28 |
14A |
20M5 |
C28Mn |
‐ |
‐ |
30Mn |
|
1035 |
S35C |
1.1183 |
Cf35 |
060A35 |
‐ |
XC38TS |
C36 |
‐ |
1572 |
35Mn |
|
1045 |
S45C |
1.1191 |
Ck45 |
080M46 |
‐ |
XC42 |
C45 |
C45K |
1672 |
Ck45 |
|
1050 |
S50C |
1.1213 |
Cf53 |
060A52 |
‐ |
XC48TS |
C53 |
‐ |
1674 |
50 |
|
1055 |
‐ |
1.0535 |
C55 |
070M55 |
9 |
‐ |
C55 |
‐ |
1655 |
55 |
|
1060 |
‐ |
1.0601 |
C60 |
080A62 |
43D |
CC55 |
C60 |
‐ |
‐ |
60 |
|
1055 |
S55C |
1.1203 |
Ck55 |
070M55 |
‐ |
XC55 |
C50 |
C55K |
‐ |
55 |
|
1060 |
S58C |
1.1221 |
Ck60 |
080A62 |
43D |
XC60 |
C60 |
‐ |
1678 |
60Mn |
|
1095 |
‐ |
1.1274 |
Ck101 |
060A96 |
‐ |
XC100 |
‐ |
F.5117 |
1870 |
‐ |
|
W1 |
SK3 |
1.1545 |
C105W1 |
BW1A |
‐ |
Y105 |
C36KU |
F.5118 |
1880 |
‐ |
|
W210 |
SUP4 |
1.1545 |
C105W1 |
BW2 |
‐ |
Y120 |
C120KU |
F.515 |
2900 |
‐ |
Packing and delivery
Our annual sales are 8,000 tons. It is the top steel service provider and steel solution provider in the region. The company has a powerful sales team to provide customers with comprehensive technical support, pre -sales service and comprehensive after -sales service. The entire perfect treatment and sales process is our quality assurance.
